Items
|

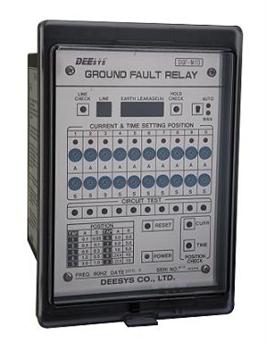

DGF M10(For 10Circuits)
|
DGF-M05(For 5 Circuits)
|
|
|
|
Usage
|
for Protection against minor and Major Ground Leakage Faults
|
|
|
|
Control Power Voltage
|
AC110/220V Operable in common or AC 240V
|
|
|
|
Frequency
|
50/60 Hz Operable in Common
|
|
|
|
Operating Current Setting
|
9Steps, of 0.1, 0.3, 0.5, 1, 2, 3, 5, 10 and Lock
|
|
|
|
T: 70% TO 100% of Current Setting
|
|
|
|
Operating Time Setting
|
9Steps, of 0.05, 0.1, 0.3, 0.5, 1, 2, 3, 5, 10sec
|
|
|
|
T: ±10% TO 0.05 T=0.1±25ms
|
|
|
|
Ground Fault
|
10 Circuits
|
5 Circuits
|
|
|
|
Detection Circuit
|
|
|
|
Operating Status indicator
|
LED(Red) and Digital Display one for each Circuit
|
|
|
|
Resetting
|
Autu/Manual
|
|
|
|
Ambient Temperature
|
-10℃~+50℃
|
|
|
|
Vibration
|
Energized : Full vibration width 4mm, 1000rpm, 10min
|
|
|
|
Resistance
|
Deenergized : Full vibration width 4mm, 1000rpm, 60min
|
|
|
|
Impact Resistance
|
Impact Strenght of 300㎨ applied to 3 axial directions of right &
|
|
|
|
Left, up & down, and behind & Forward
|
|
|
|
Common Frequency
|
Opn Cirr-Casing : AC 2000V
|
┓
|
|
|
|
Dielecric
|
Opn Cir-Opn Cir : AC 2000V
|
┣ 60Hz, 1MIN
|
|
|
|
Resistance
|
Test Cir-Terminals : AC 1000V
|
┛
|
|
|
|
Insulating
|
Opn Cirr-Casing : 10㏁ or more
|
┓
|
|
|
|
Resistance
|
Opn Cir-Opn Cir : 10㏁ or more
|
┣ BY DC 500V MEGGER
|
|
|
|
|
Test Cir-Terminals : 10㏁ or more
|
┛
|
|
|
|
Power consumption
|
7VA
|
5VA
|
|
|
|
Contact Capacity
|
AC 125V 5A / DC 30V 5A
|
|
|
|
Weight
|
2.0Kg
|
1.7Kg
|
|
|
|
ZCT(Input)
|
ZCT Rating 200mA/100mV (ZR, ZS, ZB, type 사용)
|
|
|
|
|
|
> GFR
|
|
|
|
Model
|
DGF-M05T
|
DGF-M10T
|
DGF-M05
|
DGF-M10
|
|
DRB-005, 010
|
Combination
|
None(Direct)
|
|
Contact
|
1a
|
1a & (5c or 10c)
|
|
Contact Capacity
|
ARB(Contact)AC250V/10A
|
AC250V/10A
|
|
Purpose
|
Trip(MCCB) or Alarm
|
Trip(MCCB) & Alarm
|
