Deseription
|
3E Type
|

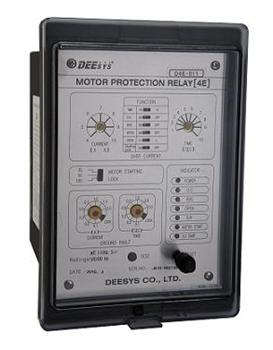

4E Type
|
|
Motor rating
|
Circuit voltage
|
Less than AC 600V(3Φ), Primary voltage
|
|
Rated current
|
AC 1-80A to 64-160A, primary current
|
|
Rated voltage
|
AC 110V, AC220V, AC380V (3 Φ)
|
|
Extent voltage
|
85%~110% of Rated Voltage
|
|
Frequency
|
50/60Hz common
|
|
Contact capacity
|
AC 120V 10A, AC 250V 6A (cosΦ=1.0), DC 30V 5A, AC 250V 3A (cosΦ=0.4)
|
|
Power consumption
|
Control power
|
AC 110V, 220V, 380V
|
AC 110V,220V
|
|
VA
|
3.5VA
|
7VA
|
10VA
|
|
Element ofover load
|
Operating Value
|
Operation 115% of current set value (105~125%)
|
|
Operating time Curve
|
Inverse
|
Inverse, Definite (Ground)
|
|
Operating time
|
When over load 600% of current set
|
Inverse: Same as 3E
|
|
Operating time tap×1(1~10sec)
|
Ground Fault: More than
|
|
Operating time tap×4(4~40sec)
|
Current set value
|
|
Reset
|
More than 100% of current set value
|
|
Element of open phase
|
Operating Value
|
Less than 75% of current set value
|
|
Unbalance factor
|
H(high sensitivity set ±3510%, L(low sensitivity)65±10%
|
|
Operating time
|
Less than 4sec
|
|
Value of Operation
|
Less than 80% rated voltage
|
|
Operating time
|
Less than 1sec
|
|
Starting Lock
|
Starting hold time 5sec/10se/15sec
|
|
SL (Start Lock)
|
ON(operating) OFF(Non operating)
|
|
Ambient temperature
|
Operating value : ±10%(-10℃~+50℃), operating time: ±20%
|
|
Insulation resistance
|
Primary-case, Secondary-case : More than 10㏁
|
|
Dielectric strength
|
Primary-case, Secondary-case : AC 2000V 1minute
|
|
Multually dry contact : AC 1000V 1minute
|
|
Impulse wave
|
1.2/50㎲ positive, negative polarity : 3times
|
|
withstand voltage
|
Electric circuit to case : 5kV
|
|
Aux power to terminal : 4.5kV
|
|
Over load
|
P'ry current circuit
|
Multiple 20 of current set value
|
|
factor
|
Control power circuit
|
Multiple 1.15 of rated voltage (3 Hours)
|
|
Vibration strength
|
Vibration frequency 16: 7hz, amp;itude 4mm
|
|
Mechanical shock resistance
|
500m/s 2 (50g)
|
| |
|
|
|
|
