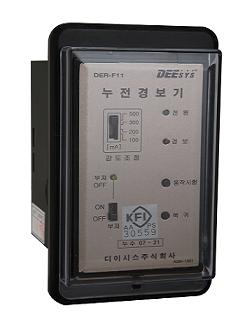

Rơ le bảo vệ dòng rò đơn kênh

Earth Leakage Fire Alarm & Relay [ELR]- 1C

DER-F11, DER-F12, DER-F03, DER-P11, DER-P12, DER-P03

Giá:

Liên hệ

Kiểu: DER-F11, DER-F12, DER-F03, DER-P11, DER-P12, DER-P03

Nhà sản xuất: DEESYS

Nhà phân phối: Công Ty TNHH Thương Mại Quốc Tế An Phú

Trạng thái:

Còn Hàng

Mua hàng Download Catalog
Thông tin sản phẩm

Specification


Description

Analog Type

Model No

DER-F03

DER-F11

DER-F12

DER-P03

DER-P11

DER-P12

Type approval No



07-21

07-22

07-15

07-6

07-11

Installation

1C flush mounted

1C Socket type

Auxiliary voltage

 AC 110/220V

Frequency

 50 / 60 Hz

Nominal operating current(A)

0.03-0.05-0.07-0.1

0.1-0.2-0.3-0.5

0.2-0.5-0.7-1.0

0.03-0.05-0.07-0.1

0.1-0.2-0.5-0.5

0.2-0.5-0.7-1.0

Current

Operating

 53%~75% of nominal operating current 1sec

Non operating

 52% of nominal operating current 30sec

Aux Power supply voltage

 80%~120% of Rated Voltage

Reset

 Manual

Warning circuit voltage

 Less than AC 600V

LED indicator

 Buzzer alarm indicator: LED (Red color)

 Power indicator: LED (Green color)

 ZCT penetration indicator: LED (Yellow color)

 Continue / Auto alarm: LED (Yellow color)

 Buzzer alarm: LED (Yellow color)

Power
consumption

Non operating

 2.5VA

Operating

 3VA

ZCT(Input)

30㎃ / 50㎷

200㎃ / 100㎷

30㎃ / 50㎷

200㎃ / 100㎷

Ambient temperature

 -10℃ ~ +50℃

Sound level

 Buzzer (more than 75 dB)

Insulation resistance

 Primary - Case, Secondary - Case
 Primary - Secomdary ▶ more than 100MΩ (DC 500V MEGGER)

Dielectric strength

 Primary - Case : 1500V , Secondary - Case : 500V,
 Primary - Secomdary : 1500V ▶ AC 60Hz. 1miniute

Impulse wave withstand voltage

 Between - terminals,
 Power terminals - case ▶ Peak value 6.0Kv 1.2/50㎲

Vibration strength

 On duty : Full wave width 1mm. 1000rpm. 10min.
 Not on duty : Full wave width 4mm 1000rpm 60min

Mechanical shock resistance

 On duty : natural drop 15times
 Not on duty : Accelebration of 50g Max force in any direction for 5 times

Contect capacity

 AC 125V 3A, DC 30V 5A

Rate of fuse

 0.1A

Weight

0.7Kg

0.7Kg

0.7Kg

0.5Kg

0.5Kg

0.5Kg

Case

 ABS Resin/Black N1.5(Non-flamable)
