Part Name
|

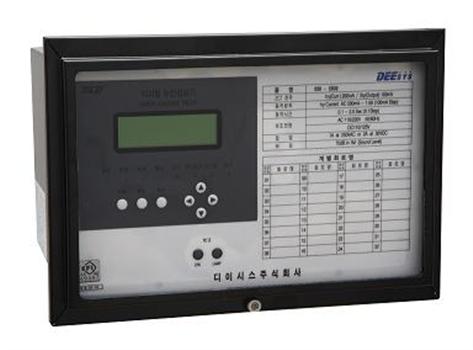

Digital Earth Leakage Detector and Relay
|
|
|
Model
|
D2K-ED08
|
D2K-ED16
|
D2K-ED24
|
D2K-ED32
|
|
|
Certificate No
|
07-13
|
07-16
|
07-14
|
07-10
|
|
|
Monitoring Circuit
|
8 Circuit
|
16 Circuit
|
24 Circuit
|
32 Circuit
|
|
|
Power Source
|
AC 110/220 ±15%, 50/60Hz (Default), DC 110/125 ±20%
|
|
|
Rated Current Sensitivity
|
AC 200mA~1000mA (100mA Step), Default-0.5A
|
|
|
Time Setting Range/Deviation
|
0.1~3.0sec/0.1 ±50ms, 0.2~3.0 ±15%(0.1sec, Step), Default-0.2sec
|
|
|
Operating Current
|
Between 53% and 75% of resonable value
|
|
|
Non-Operating Current
|
Below 52% of reasonable value
|
|
|
Rated current ZCT
|
200mA/100mV (75~125mV at 2㏀ Resistance)
|
|
|
Communication
|
Speed : 19,200bps, RS-485(2wire) Modbus, 1.2km
|
|
|
Display
|
L.C.D (20Char X 4Line)
|
|
|
Key Method
|
Mode, ESC, Enter, Direction Key(←,↑,→,↓)
|
|
|
LED(Lamp)
|
RUN (green): Indicationg the staus of the internal CPU
|
|
|
Auto(yellow): Resetting of Relay and Lamp[On(Flickering):Auto/Off:Manual]
|
|
|
BUZZER (Yellow): Indicating whether of not the buzzer would sound when operating [Off(Flickering):No Beep/On:Beep]
|
|
|
COMM (Yellow): Indicating communication in progress(Flickering)
|
|
|
ZCT (Red): Faulty ZCT connection (unused feeder-Z.C.T Common terminal)
|
|
|
PICK (Red): Detecting leakage current when operating
|
|
|
SYS (Red): Internal error in the detector (System Error)
|
|
|
ALARM (Red): Indicating operation caused by an electric leakage
|
|
|
Fault Memory
|
10 faults(the latest fault is marked with "1"
|
|
|
Resetting Method
|
Auto Reset / Manual Reset(selected with the program)
|
|
|
Temperature
|
-10℃~60℃(in operation), -20~70℃ (to be kept)
|
|
|
Mounting Method
|
Flush mounted type
|
|
|
Capacity of contact Point
|
AC 250V 5A 0.5sec (L/R=0)
|
|
|
Buzzer
|
75dB (within 1m)
|
|
|
Insulation Resistance
|
1st-ground / 2nd-ground / 1st-2nd: 100㏁ or more DC 500V Megger
|
|
| |
|
Withstand voltage
|
1st-ground: AC 1,500V / 2nd-ground: AC 500V / 1st-2nd: 100㏁ or more: AC1,500V
|
|
|
Lightning impulse
|
Aux. power-ground 1.2㎲ x 50㎲ X 60kV Positive/Negative elevtronics. 3times
|
|
|
withstand voltage
|
|
|
Vibration
|
Vibration frequency: 16.7Hz Double amplitude: 0.4mm Direction: horizontal, Vertical, transverse
|
|
|
Shock
|
Shock acceleration: 50G Shock application direction horizontal, vertical, transverse
|
|
|
Shock time: 3times
|
|
|
Weight
|
2Kg
|
7Kg
|
|
