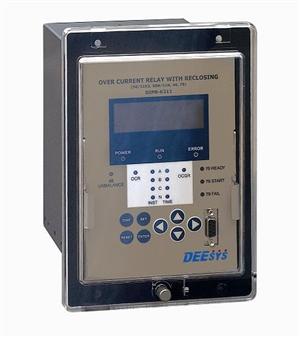

Rơ le bảo vệ hệ thống điện

 ATINGS

 Input

 Rated current

 AC 5A

 Rated frequency

 60Hz

 Control power

 Rated input

 110 ~ 220VAC / 110 ~220VDC

 Permissible range of

 input

 88~264VAC/88~264VDC(±20%)

 Output voltage

 +5V / +15V / -15V / +24V

 Output current

 2A / 0.5A / 0.5A / 1A

 Output burden

 50VA

> Instantaneous time short-circuit over current clcment ( 50 )

> Instantaneous time ground over current element ( 50N )

 Operation

 Pick-up value

 10.0 ∼ 80.0A (0.1A STEP)

 Operation

 Pick-up value

 5 ∼ 40.0A (0.1A STEP)

 Precision

 Within ±5% of the pick-up value

 Precision

 Within ±5% of the pick-up value

 Time characteristics

 Instantaneous time(40~50mS), definite

 time

 Time characteristics

 Instantaneous time(40~50mS), definite

 time

 (0.04 ~ 10.00S / 0.01 STEP)

 (0.04 ~ 10.00S / 0.01 STEP)

 Return

 Return value

 At least 90% of the pick-up value

 Return

 Return value

 At least 90% of the pick-up value

 Returning time

 40mS or shorter

 Returning time

 40mS or shorter

 Retardation time

 20 ∼ 200mS (0.01 STEP)

 Retardation time

 20 ∼ 200mS (0.01 STEP)

> Definite time short-circuit over current clcmen ( 51 )

> Definite time ground over
current element ( 51N )

 Operation

 Pick-up value

 0.5 ∼ 12.0A (0.1A STEP)

 Operation

 Pick-up value

 0.1 ∼ 4.0A (0.1A STEP)

 Precision

 Within ±5% of the pick-up value

 Precision

 Within ±5% of the pick-up value

 Time characteristics

 Inverse time

 Time characteristics

 Inverse time

 T-lever

 0.1 ~ 10.0S (0.1 STEP)

 T-lever

 0.1 ~ 10.0S (0.1 STEP)

 Operating time

 precision

 Within ±5% of time lever

 Operating time

 precision

 Within ±5% of time lever

 Return

 Return value

 At least 90% of the pick-up value

 Return

 Return value

 At least 90% of the pick-up value

 Returning time

 100mS or shorter

 Returning time

 100mS or shorter

 Retardation time

 20 ∼ 200mS (0.01 STEP)

 Retardation time

 20 ∼ 200mS (0.01 STEP)

> Load unbalance element
( UBOCR )

> Reclosing element ( 79 )

 Operation

 Pick-up value

 0.1 ∼ 4.0A (0.1A STEP)

 Number of times or reclosing

 Can be selected among 1~3 times

 Precision

 Within ±5% of the pick-up value

 Instantaneous time blocking

 YES / NO can be selected

 Time characteristics

 Definite time

 PREPARE TIME

 Operating time

 60 ~ 180S (1 STEP)

 Operating time

 0.1 ~ 10.0S (0.1 STEP)

 Precision

 Within ±5% of the pick-up value

 Operating time

 precision

 Within ±5% of time lever

 RECLAIM TIME

 Operating time

 60 ~ 180S (1 STEP)

 Return

 Return value

 At least 90% of the pick-up value

 Precision

 Within ±5% of the pick-up value

 Returning time

 100mS or shorter

 Input duration

 0.1 ~ 2.0S (0.1 STEP)

 Retardation time

 20 ∼ 200mS (0.01 STEP)

 DISCRIMINATION TIME

 0.1 ~ 30.0 (0.1 STEP)

> Characteristics

- DIGITAL complete operational three phase over current, ground over current,

 unbalanced load OLTC blocking, reclosing relay

- The reclosing function can be set ON/OFF and the number of times of reclosing can

 be freely designated up to three times

- Each necessary relay element can be separately enabled for selective use

- The 50B function has been built-in so that the product can be used without

 separately configuring OLTC BLOCKING.

- Output contact point maintaining time in a range of 0~200ms can be set up for each

 relay element

- Current sensing elements operate normally even under reclosing failure

- Reliability has been secured through self-diagnostic functions and permanent monitoring

 function

- RS-232C and RS-485C communication methods are supported

- An interlocking mode is provided to enable setting any of 12 output contact points as

 necessary.
