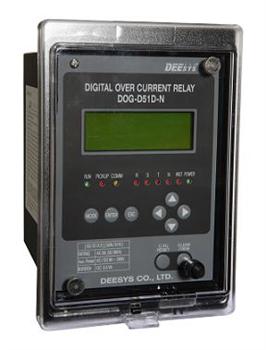

Model
|
DOG-D51-N ( Non Draw out )
|
|
DOG-D51D-N ( Draw out )
|
|
Rating
|
Rated current
|
AC 5A
|
|
Frequency
|
50/60Hz ±5%
|
|
Standard Code
|
IEC 255, KEMC 1120
|
|
Communication
|
RS-485 Modbus Protocol
|
|
Memory
|
Up to 10 Records of fault data
|
|
Auxiliary Voltage
|
AC/DC 110V (86~260V)
|
|
Ambient temperature
|
-10℃ to 60℃(with no icing)
|
|
Current Setting
|
- OC -
|
|
|
Over current Range
|
0.2 ~ 15A Lock (stepas of 0.1A)
|
|
Instantaneous Range
|
5 ~ 80A Lock (stepas of 1A)
|
|
- EF -
|
|
|
Over current Range
|
0.2 ~ 5A Lock (stepas of 0.1A)
|
|
Instantaneous Range
|
1 ~ 40A Lock (stepas of 1A)
|
|
Time Setting &
|
OC / EF time lever
|
0.1 ~ 40 (Steps of 0.1)
|
|
Curve IEC 255-3
|
Normal inverse time
|
NI= (0.14/I0.02 -1) * (tp/10)
|
|
|
Very inverse time
|
VI= (13.5/I -1) * (tp/10)
|
|
|
Extremely inverse
|
EI= (80/I2 -1) * (tp/10)
|
|
|
Definite time
|
DE= tp
|
|
|
Resetting Value
|
> 90%
|
|
|
Reset time
|
< 100ms
|
|
Operating time
|
Over Current
|
Lever #10
|
|
Normal inverse time
|
300% 6.3 sec, 700% 3.5 sec
|
|
Very inverse time
|
300% 6.75 sec, 700% 2.25 sec
|
|
Extremely inverse time
|
300% 10 sec, 700% 1.67 sec
|
|
Earth Fault
|
Lever #5
|
|
Normal inverse time
|
300% 3.15 sec, 700% 1.76 sec
|
|
Very inverse time
|
300% 3.37 sec, 700% 1.12 sec
|
|
Extremely inverse time
|
300% 5 sec, 700% 0.83 sec
|
|
Instantaneous time
|
Iess then 0.05 sec
|
|
Degree Protection
|
IP 52
|
|
Thermal Withstand Capability
|
for 1s 80xIn Continuously 3xIn
|
|
Burden
|
Overcurrent & Earth Fault
|
0.5VA
|
|
Aux Voltage
|
12VA(AC), 6W(DC)
|
|
Contacts
|
Output Relay
|
Trip 2a
|
|
Trip & Alarm contact capacity
|
|
Make
|
AC 240V 10A (L/R=0ms)
|
|
DC 1000W 0.5sec (L/R=0ms)
|
|
Break
|
AC 240V 3A (L/R=0ms)
|
|
DC 30W 0.5sec (L/R=0ms)
|
|
Vibration resistance
|
Malfunction
|
10Hz 5mm double amplitude 30s each in X and Y directions
|
|
16.7Hz 2.5mm double amplitude 600s each in X, Y and Z
1directions
|
|
Shock resistance
|
Destruction
|
300㎨(approx. 30G) 3times each in 3 directions
|
|
Insulation to IEC 255
|
Dielectric Withstand
|
2kV for 1minute between all terminals
|
|
Insulation resistance at 500V
|
>100㏁ (DC 500V Megger)
|
|
Impluse Voltage Withstand
|
5kv-1.2/50㎲ Positive / Negative 3 Time
|
|
Surge transient simulator
|
2.5kv 1MHz/200Ω
|
|
Weight
|
2.0kg
|
