Rơ le bảo vệ hệ thống điện

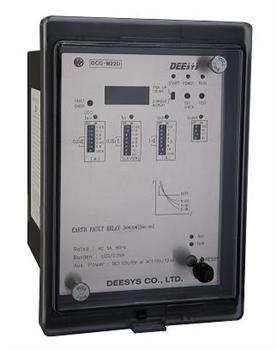

Digital Ground Over Current Relay (Earth Fault Relay)[50/51N]

DCG-M22/D

Giá:

Liên hệ

Kiểu: DCG-M22/D

Nhà sản xuất: DEESYS

Nhà phân phối: Nhà phân phối độc quyền tại Việt Nam: Công Ty TNHH Thương Mại Quốc Tế An Phú

Trạng thái:

Còn Hàng

Mua hàng Download Catalog
Thông tin sản phẩm




Specification



Model

DCG-M22 (Non Draw out)

DCG-M22D (Draw out)

Rating

Rated current

AC 5A

Frequency

50/60Hz ±5%

Auxiliary Voltage

AC/DC 110V (86~260V)

Ambient temperature

-10℃ to 60℃(with no icing)

Current Setting

Over current Range

0.2~2A (stepas of 0.05)

Instantaneous Range

1~40A(stepas of 0.5A)

Time Setting &

Overcurrent time lever

0.25~40(Steps of 0.25)

Curve IEC 255

Instantaneous

Less than 40ms(over 200%)



Normal inverse time

NI= (0.14/I0.02 -1) * (tp/10)



Very inverse time

VI= (13.5/I -1) * (tp/10)



Extremely inverse

EI= (80/I2 -1) * (tp/10)



Definite time

DE= 2 * (tp/10)



Resetting Value

> 95%



Reset time

< 100ms

Operating time

Over Current

Lever #10

Normal inverse time

300% 6.3 sec, 700% 3.5 sec

Very inverse time

300% 6.75 sec, 700% 2.25 sec

Extremely inverse time

300% 10 sec, 700% 1.67 sec

Instantaneous time

Iess then 0.04 sec(200% overcurrent)

Degree Protection

IP 52

Thermal Withstand Capability

for 1s 80xIn Continuously 3xIn

Burden

Overcurrent

0.5VA

Aux Voltage

12VA(AC), 6W(DC)

Contacts

Output Relay

Trip 1c, Alarm 1a

Trip & Alarm contact capacity

Make

AC 240V 10A (L/R=0ms)

DC 1000W 0.5sec (L/R=0ms)

Break

AC 240V 3A (L/R=0ms)

DC 30W 0.5sec (L/R=0ms)

Indicator

Operating(Start)

LED (Red)

Operating(trip)

LED (Gre)

Vibration resistance

Malfunction

10Hz 5mm double amplitude 30s each in X and Y directions

16.7Hz 2.5mm double amplitude 600s each in X, Y and Z 1directions

Shock resistance

Destruction

300㎨(approx. 30G) 3times each in 3 directions

Insulation to IEC 255

Dielectric Withstand

2kV for 1minute between all terminals and case earth

Insulation resistance at 500V

>100㏁

Impluse Voltage Withstand

5kv-1.2/50㎲

Surge transient simulator

2.5kv 1MHz/200Ω

Weight

2.0kg
