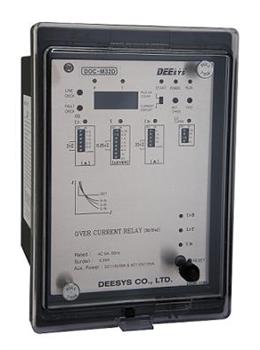

Rơ le bảo vệ quá dòng cắt nhanh/ có thời gian duy trì

Digital Over Current Relay[50/51 2￠]

DOC-M32/D

Giá:

Liên hệ

Kiểu: DOC-M32/D

Nhà sản xuất: DEESYS

Nhà phân phối: Nhà phân phối độc quyền tại Việt Nam: Công Ty TNHH Thương Mại Quốc Tế An Phú

Trạng thái:

Còn Hàng

Mua hàng Download Catalog

Thông tin sản phẩm

Model	DOC-M32 (Non Draw out)
Model	DOC-M32D (Draw out)
Rating	Rated current	AC 5A
	Frequency	50/60Hz ±5%
	Auxiliary Voltage	AC/DC 110V (86~260V)
	Ambient temperature	-10℃ to 60℃(with no icing)
Current Setting	Over current Range	2 ~ 10A Lock (stepas of 0.5A)
Current Setting	Instantaneous Range	20 ~ 80A Lock (stepas of 5A)
Time Setting &	Overcurrent time lever	0.25~40(Steps of 0.25)
Curve IEC 255-3	Instantaneous	Less than 40ms(over 200%)
	Normal inverse time	NI= (0.14/I^0.02 -1) * (tp/10)
	Very inverse time	VI= (13.5/I -1) * (tp/10)
	Extremely inverse	EI= (80/I² -1) * (tp/10)
	Definite time	DE= 2 * (tp/10)
	Resetting Value	> 95%
	Reset time	< 100ms
Operating time	Over Current	Lever #10
	Normal inverse time	300% 6.3 sec, 700% 3.5 sec
	Very inverse time	300% 6.75 sec, 700% 2.25 sec
	Extremely inverse time	300% 10 sec, 700% 1.67 sec
	Instantaneous time	300%
	Degree Protection	IP 52
	Thermal Withstand Capability	for 1s 80xIn Continuously 3xIn
Burden	Overcurrent	0.5VA
Burden	Aux Voltage	12VA(AC), 6W(DC)
Contacts	Output Relay	Trip 1c, Alarm 1a
	Trip & Alarm contact capacity
	Make	AC 240V 10A (L/R=0ms)
	Make	DC 1000W 0.5sec (L/R=0ms)
	Break	AC 240V 3A (L/R=0ms)
	Break	DC 30W 0.5sec (L/R=0ms)
Indicator	Operating(Start)	LED (Red)
	CPU RUN	LED (Gre)
	Operating(trip)	LED (Red)
Vibration resistance	Malfunction	10Hz 5mm double amplitude 30s each in X and Y directions
Vibration resistance	Malfunction	16.7Hz 2.5mm double amplitude 600s each in X, Y and Z 1directions
Shock resistance	Destruction	300㎨(approx. 30G) 3times each in 3 directions
Insulation to IEC 255	Dielectric Withstand	2kV for 1minute between all terminals and case earth
	Insulation resistance at 500V	>100㏁
	Impluse Voltage Withstand	5kv-1.2/50㎲
	Surge transient simulator	2.5kv 1MHz/200Ω
	Weight	2.0kg
